Features:
● Advanced, long-life Li-ion battery;
● Brushless motor – newest technology – promotes long motor life;
● Balanced, ergonomically handle;
● Short cycle times at full stroke;
● Comfortable grip and is not tired for long hours of work;
● Suitable for all material including Aluminum, Steel, and Stainless steel.
Applications:
● Fastener types: 5.0 mm (3/16") & 6.4 mm (1/4");
● Apply to: Auto industry/ Cargo container/ Rail equipment industry/ Boat building / Construction / Display shelves / Furniture / Restaurant equipment / Signs / Trailers, Cargo containers / Vending machines.
Technical Data
Product Model | KD-02X2 |
Pull Force | 28 KN |
Capacity | 18.0 V / 5.0 Ah Li-ion Battery |
Stroke | 25 mm |
Cycle Time | 1.2S |
Weight without Battery | 1.66 kg |
Packing Size | 36/28/9.5 cm |
Battery Charger | Input 100-240 V AC |
| Charging Time | Approx . 50 mins |

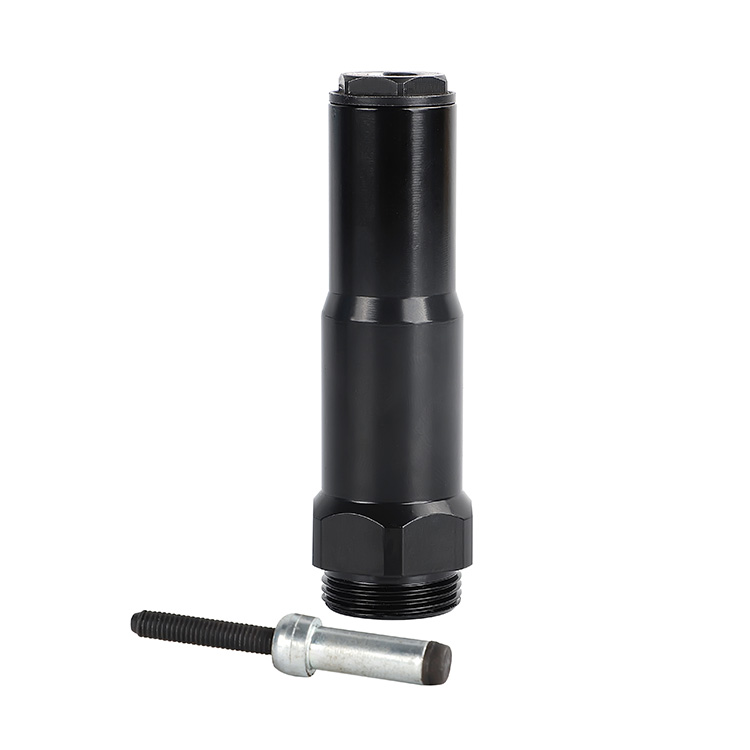

Nozzle Spec.
Basic Kit

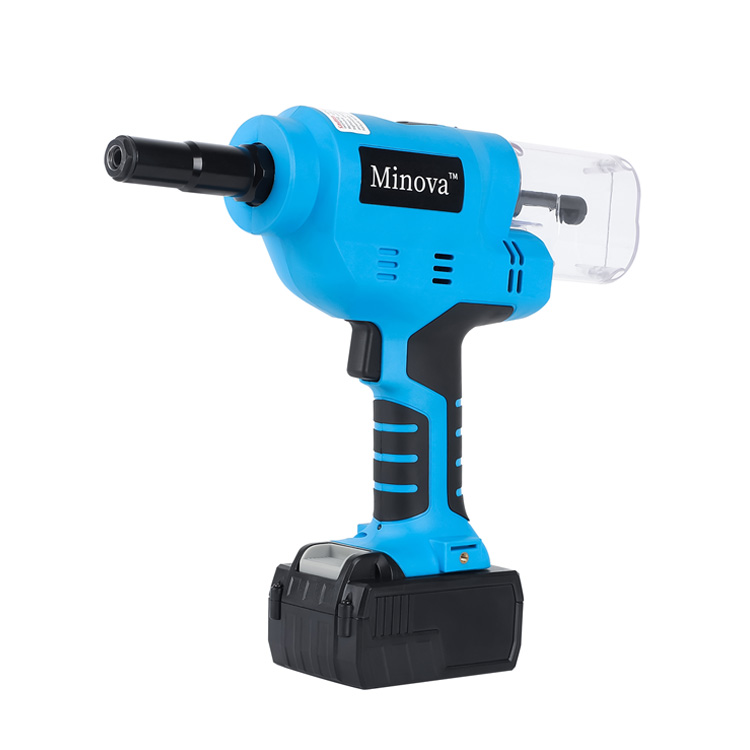

 | KD-02X2 1* Cordless Riveter Handle; 2* Battery Pack:18.0 V/ 5.0 Ah; 1* High Quality Plastic Box; 1* Nosepiece 6.4 mm (1/4"); 1* Charger; 1* Spanner. |
